B-Series Single Bay Lecterns

The B-Series multimedia single bay lectern is a one door wide lectern with a pull out keyboard drawer and an angled data panel to house touch screens, power/data points etc. The top has been designed with a recessed "trough" which lowers the data panel and helps keep the lectern at a comfortable height.

The B-Series multimedia single bay lecterns come standard with two adjustable shelves, lockable doors and lockable/removable service panel. B-Series internal width is correct for 19inch RU rack stripping.

Databoard panel can be changed to suit various size touch panels or power/data points you plan to use. (Though this effects the lecterns overall height)

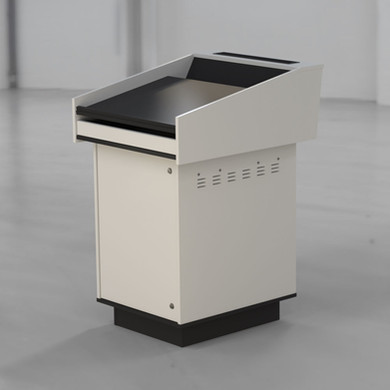

A picture of the B-Series multimedia single bay lectern

Lectern Models

BGL-CPM01F

BGL-CPM01A

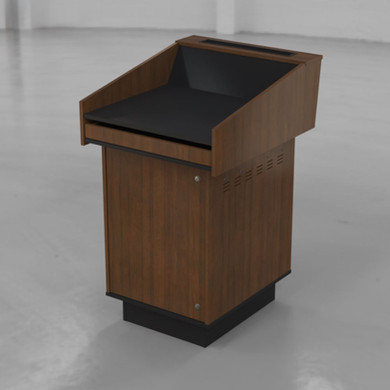

A B-Series single bay lectrn with a flat top A B-Series single bay lectern with an angled top

Angled control panel lectern with flat work surface.

Angled control panel lectern with angled work surface.

Accessories and Options


Accessory / Option Order Code
Rack Strip
fully installed according to specs.
BG-RS Picture of rack stripping withing the lectern
External Shelf
External shelf on heavy duty down stays.
BG05 A picture of a lecterns external shelf
Monitor cut into work surface, no glass panel

Monitor cut into work surface, with glass panel

Contact Blue Gum Joinery for more information.
BG06-N

BG06

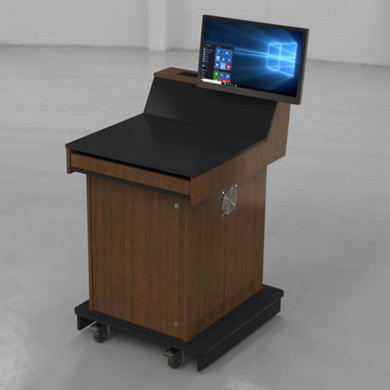

A monitor that has been placed inside the lecterns work surface
Heavy duty castor wheels
4 Heavy duty swivel castor wheels with brakes.
BG-HDW4 4 Heavy duty castor wheels attached underneath the lecterns base
Heavy duty castor wheels hidden behind kickboard
4 Heavy duty, hidden swivel castor wheels with brakes.
BG-HDW4-K 4 Heavy duty castor wheels hidden behind a kickboard
LED Gooseneck light
with chassis switch and transformer fully installed.
BG-LED-CS An image of an LED gooseneck light
LED strip lighting within lectern
withing lectern providing lighting for maintenance.
BG-L-STRIP Internal LED stip lighting
30cm gooseneck microphone (condenser)
This is a standard microphone that requires phantom power. Other mid to high range microphones are available.
BGL-M Image of a 30cm gooseneck microphone
30cm Gooseneck microphone
with shock mount fully installed.

This is a standard microphone that requires phantom power. Other mid to high range microphones are available.
BG-M-SH Image of a 30cm gooseneck microphone connected to its shock mount
Shock mount
supplied and fitted.
BG-SH A shock mount fitted to the lecterns top
Phantom power supply box
Mains or battery powered.
BG-PP A photo of a blue phantom power supply box
120mm ventilation Fan
with on/off switch and transformer fully installed.
BG-120F A picture of a 120mm ventilation fan
Personal Delivery - Sydney Metro
We can personally deliver your lectern to ensure an undamaged product. (Sydney metro area only)
BG-DL Blue Gum Joinery can personally deliver your product
Lectern wrapped and placed on custom pallet
We can build a custom pallet and wrap your lectern ready for shipment via courier.
BG-WRAP An image of a lectern wrapped and placed on a custom pallet
Cable/Power/Data point holes
Hole cut-out during manufacture for power/data points or cables. (Standard GPO size hole or round cable hole.)

Click link to see standard power/data positions to help when ordering.
BG09 A cable access hole cut into a lectern
Access slots cut during manufacture
Contact Blue Gum Joinery for more information and to discuss options.

Access slots cut after manufacture
Contact Blue Gum Joinery for more information and to discuss options.
BG08-D

BG08-A
An access slot cut into a lectern
Control panel cut-out
We can pre-cut a hole to accept a control panel or touch screen of some description during manufacture.

Contact Blue Gum Joinery for more information and to discuss options.
BG10 A control panel cut into the work surface of the lectern
Cable tray, 2.4m length
Used with cable ties in order to neatly organise cables, powder coated black. Can be cut to size.
BG-CT80 A black, powder coated, cable tray used to neatly organise cables
Cable tray cut to size and fitted
to interior
BG-CT80-F A black cable tray cut and fitted to the lecterns interior
Cable tray bridge
for neatly crossing cables between cable trays.
BG-CTB A cable tray bridge connected two cable trays together
Door handle
fitted to lectern door.
BG-HANDLE A handle fitted to the lecterns door
Logo mounted to lectern
A logo made to your design under 8mm of clear perspex can be mounted to your lectern.
BG-P-L A perspex logo mounted to the lectern

Specifications

*Applies for all models


Usable internal height: 667mm (15RU)
Usable internal depth: 597mm


Overall height Overall width Overall depth
BGL-CPM01A: 1071mm 654mm 784mm
BGL-CPM01F: 1071mm 654mm 784mm

Colours

Standard Melamine Board Colours

The sample colours below are a range of colours Blue Gum Joinery keep in stock. By using a colour from our standard range we can manufacture your lectern in a quicker time frame.

Black

Red Cherry

Sublime Teak

Oyster Grey

Select Beech

Jarrah

Full Range of Colours

The following link will take you to a page showing the full range of Melamine board colours available.

[Full range of melamine board colours] or [Download the PDF]
