L-Series Presenter Table
Presenters side
Audience Side

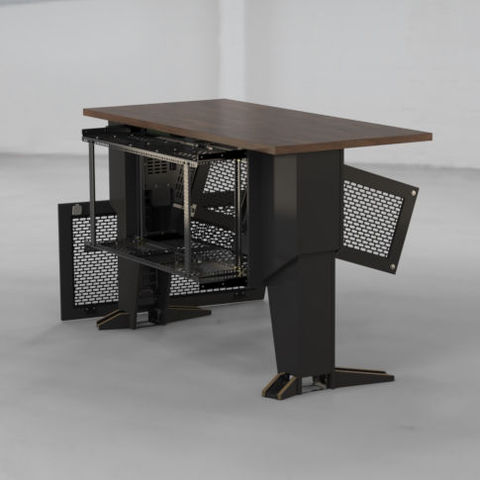

Presenters side - Doors open
Audience side - Sown with Version 1 rack frame
Multimedia L-Series presenter tables are an electronically variable height table designed to comply with Australian wheelchair access standards.
L-Series presenter tables come in two versions:
Version 1 has a slide-out custom rack frame designed so that equipment can be mounted vertical, horizontal or a combination of both. This is achieved by movable rack strip angles and supports. The slide-out frame also assists in equipment and cable access during fit-out and service.
Version 2 has a totally removable custom rack frame which can be populated with equipment off-site if required prior to fitting into the table. The rack frame houses equipment in the traditional horizontal orientation and has a total of 20RU of available rack space.
Details
Australian Made
L-Series presenter tables are designed by Blue Gum Joinery and totally built using Australian sourced materials. We build the L-Series in our Sydney based workshop which gives us control over customisation and lead times.
Designed to Comply with Australian Standards for Wheelchair Access
Australian Standards state minimum clearance to be the pink shaded section below- ALL the way to the floor.
Electronically Variable Height
Infinitely adjustable with three saved positions using quality LINAK actuators:
Sitting Height
Wheelchair Height
Standing Height
Removable Top
Can be built from any available board colour
Programmable Lift Switch
LINAK programable height adjustment with LCD screen
Steel Ventilated body
Angled to clear wheelchair as per AUS std
Ventilated and removable doors
Access to the rear of equipment and cable voids.
Removable Cable Track
Cable track with 120mm dia bend radius. Easily removable to assist in running cables.
Cable voids and Access
Cables can be run through the feet or along optional cable tunnel. Removable panels assist in running cables and bolting table to the floor.
Melamine board side panels
Std Colour is Black but can be done in any available board if required. Contact to discuss
Pull-out rack frame
Rack frame is set-up so that equipment can be mounted either vertical or horizontal. Movable rack strips allow flexibility in layout.
L-Series Version 1 - Slide out rack frame
Vertical Supports
Besides providing support. These rails can be positioned to allow equipment to be mounted Horizontal in either 19inch or Half rack layout.
5RU movable rack strips
These rack strips are for mounting equipment vertically, allowing for 10 RU of vertical mounting space. They can also be moved left or right via bolts.
Rack Stripping
These rack strips at top and bottom can also be used to mount equipment. The vertical supports are connected to these rack strips via standard cage nuts.
L-Series Version 2 - Removable rack frame
Custom Removable Rack Frame
20 RU of horizontal mounting (19inch) frame.
Designed to give extra depth in the higher RU's and able to be fully removed for populating equipment off-site.
Ideal for situations where mounting equipment on the side is not suitable.
Options
Some of the options available to order with your L-Series Presenter Table.
Table box cut-outs
( BG10 )
Mic/Shockmount
Control Panel Cut-outs
( BG10 )
GPO size Cut-outs
( BG09 )
( BG-M1 & BG-SH )
Monitor Arm
( BG-DMA )
Control Panel Wedge
LED Light
( BG-LED-CS )
( BG-CPW-M )
Perspex Logo
(Customised to your spec)
( BG-P-L )
Cable Pass Tunnel
( BG-C-PASS )
L-Series Presenter Table can be customised to suit your requirements. Contact us to discuss your needs
Order Codes and specifications
BGL-LS-PD-V1
Version 1
-
Version 1 rack frame with multiple frame adjustments for various equipment layout - verticle or horizontal.
-
Rack frame slides out on full extension runners, allowing for access to equipment.
-
Electronic variable height actuators (240v std 3 pin plug).
-
Removable service panels for equipment access.
-
Removable benchtop - can be any available board colour.
Overall Dimensions: 675-1040mm high * 1650mm wide * 785mm deep
BGL-LS-PD-V2
Version 2
-
Version 2 rack frame with 20RU of horizontal 19inch rack strip.
-
Rack frame can be totally removed.
-
Electronic variable height actuators (240v std 3 pin plug).
-
Removable service panels for equipment access.
-
Removable benchtop - can be any available board colour.
Overall Dimensions: 675-1040mm high * 1650mm wide * 865mm* deep
*785mm deep with rack frame removed.
Colours
We can build your L-Series presenter table in any available melamine board colour from all board suppliers.
Our standard pricing is worked out based on melamine board; however, we can build your L-series presenter table in custom finishes such as polyurethane paint or natural veneers.
Please contact us if you would like to discuss colour and finish options.
