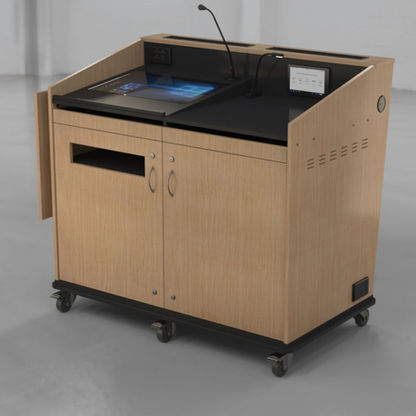

A-Series Double Bay Lecterns

Multimedia A-Series Double Bay lecterns have two large internal areas to accommodate a vast array of audiovisual equipment. Interior space is large enough to house AV racks or RU rack stripping with maximum internal height, width and depth a priority.

A-Series Double Bay lecterns are available with angled or flat-backs and or angled or flat worktop to allow for various installation options. They also come in either single bay or triple bay models.

Our A-Series Double Bay lectern comes standard with four adjustable shelves, lockable doors, removable panels, ventilation, cable access and voids. However, various options can also be added. Please see below for further option ideas.

Options

Popular Options available to order with your A-Series Single bay lectern.

External Shelves

( BG05 )

Cable pass grommet

Keyboard Drawer

( BG-D )

Monitor set into worktop

( BG06 or BG06-N )

Mic/Shockmount

( BG-M1 & BG-SH )

Control Panel Cut-outs

( BG10 )

LED Light

( BG-LED-CS )

( BG-Cable-G )

Door Cut-outs

( BG08-D )

Swivel castor

wheel base

(BG-HDW4 )

( BG-HANDLE )

Handle

GPO size Cut-outs

( BG09 )

Monitor Pole

( BG-POLE-FT )

Lower Ends with angled data-board

( BG-LOW-END )

Fan with transformer

( BG-120F-INST )

Castor wheels behind kickboards

( BG-HDW4-K )

Perspex Logo

(Customised to your spec)

( BG-P-L )

A-Series Lecterns can be fully customised to suit your requirements. Contact us to discuss your needs

Order Codes and specifications

BGL-M02A

Double Bay - Angled work surface with angled back

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  688mm (15ru)

  • Internal width:  563mm

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  600mm wide  *  754mm deep

BGL-M02F

Double Bay - Flatwork surface with angled back

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  688mm (15ru)

  • Internal width:  563mm

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  600mm wide  *  754mm deep

BGL-M02A-FB

Double Bay - Angled work surface with a flat back

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  688mm (15ru)

  • Internal width:  563mm

  • Internal depth:  700mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  600mm wide  *  754mm deep

BGL-M02F-FB

Double Bay - Flatwork surface with a flat back

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  688mm (15ru)

  • Internal width:  563mm

  • Internal depth:  700mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  600mm wide  *  754mm deep

BGL-M02A-FB-N

Double Bay - Angled work surface with flat back - Narrow depth

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  688mm (15ru)

  • Internal width:  563mm

  • Internal depth:  580mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  600mm wide  *  634mm deep

BGL-M02F-FB-N

Double Bay - Flatwork surface with flat back - Narrow depth

  • Internal height (without optional keyboard drawer):  770mm  (17ru)

  • Internal height (With optional keyboard drawer):  688mm (15ru)

  • Internal width:  563mm

  • Internal depth:  580mm

  • Worksurface height (to lowest edge):  910mm

Overall Dimensions:  1100mm high  *  600mm wide  *  634mm deep

Colours

We can build your A-Series double bay lectern in any available melamine board colour from all board suppliers.

Our standard pricing is worked out based on melamine board; however, we can build your A-series lectern in custom finishes such as polyurethane paint or natural veneers.

Please contact us if you would like to discuss colour and finish options.
