B-Series Single Bay Lecterns

BGL-CPM01A - Lecturer Side
BGL-CPM01 - Audience Side
BGL-CPM01A - Lecturer Side Doors Open
BGL-CPM01 - Audience Side Doors Open

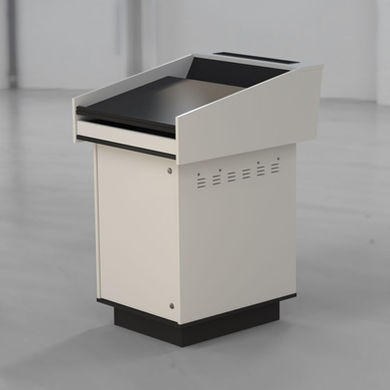

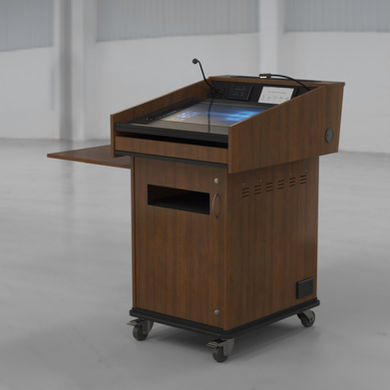

The B-Series single-bay lectern is a one door wide lectern with pull out keyboard drawer and angled data panel to house touch screens, power/data points etc.



The angled top version has a top designed with a recessed “Trough” which lowers the touch screen and helps keep the overall lectern at a comfortable height.



B-Series Single Bay lecterns come standard with two adjustable internal shelves, lockable doors and lockable/removable service panel.



B-Series internal width is correct for 19inch rack stripping - Rack strip is an option. Note: Rack frames do not fit into the B-Series lecterns without customising the overall sizes.



Databoard height can be changed to suit the various size touch panels or power/data points you plan to use (affects lectern overall height).

​

B-Series single bay lecterns come fully assembled.

Options

Popular Options available to order with your B-Series Single bay lectern.

B-Series Single Bay options and codes

External Shelves

( BG05 )

Mic/Shockmount

( BG-M1 & BG-SH )

Control Panel Cut-outs

( BG10 )

LED Light

( BG-LED-CS )

Monitor set into worktop*

( BG06 or BG06-N )

Cable pass grommet

( BG-Cable-G )

Keyboard Drawer

( BG-D )

Door Cut-outs

( BG08-D )

( BG-HANDLE )

Handle

GPO size Cut-outs

( BG09 )

Swivel castor wheel base

(BG-HDW4 )

* Monitor is not included - user supplied

B-Series Single Bay options and codes audience side

Monitor Pole

( BG-SP-AA-B )

Lower Ends with angled data-board

( BG-LOW-END )

Fan with transformer

( BG-120F-INST )

Perspex Logo

(Customised to your spec)

( BG-P-L )

Castor wheels behind kickboards

( BG-HDW4-K )

B-Series Lecterns can be fully customised to suit your requirements. Contact us to discuss your needs

Order Codes and specifications

BGL-CPM01A

Single Bay - Angled work surface with angled back

​

  • Internal height:  667mm  (15ru)

  • Internal width:  489mm

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  900mm

​

Overall Dimensions:  1074mm high  *  654mm wide  *  784mm deep

​

CPMO1A Dimensions

BGL-CPM01F

Single Bay - Flat work surface with angled back

​

  • Internal height:  667mm  (15ru)

  • Internal width:  489mm

  • Internal depth:  600mm

  • Worksurface height (to lowest edge):  900mm

​

Overall Dimensions:  1074mm high  *  654mm wide  *  784mm deep

​

CPM01F Dimensions

Colours

We can build your B-Series single-bay lectern in any available melamine board colour from all board suppliers.

​

Our standard pricing is worked out based on melamine board; however, we can build your B-series lectern in custom finishes such as polyurethane paint or natural veneers.

​

Please contact us if you would like to discuss colour and finish options.
