Pull Out Swivel Frame

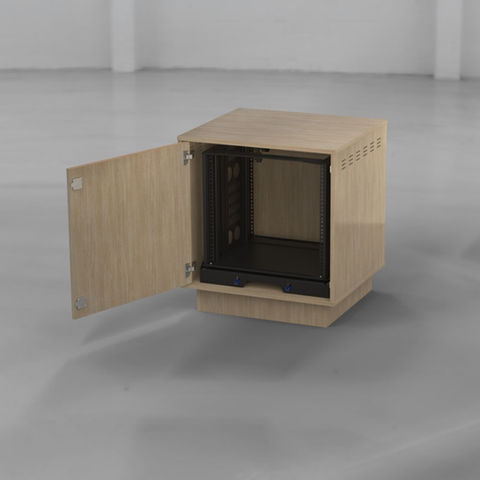

Pull out swivel frame in closed position

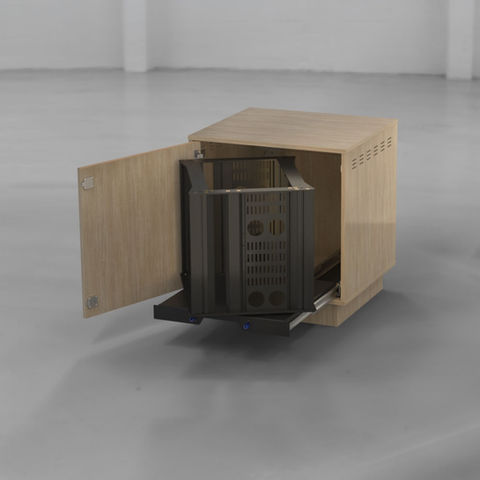

Pull out swivel frame extended with slim rack fitted

Details

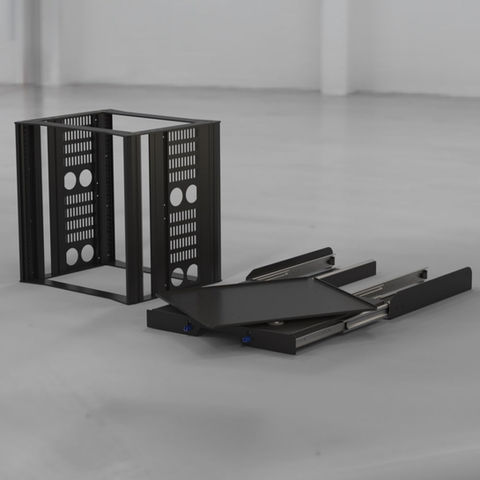

Rack frame bolts on and off to the swivel plate.

3mm thick folded steel mounting plates

Locking lever allows the frame to lock in both the open and closed position

Made to order 450mm deep Slim Rack at any height from between  2-24 RU

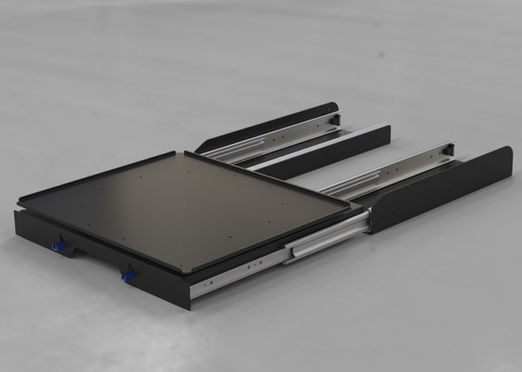

4 x Heavy-duty full extension runners

Slim Rack Details

Dimensions

Mounting Hole Positions

Contact us for more information

Order Codes and specifications

BG-PULLOUT-450-6

Pull out swivel & rack frame between 2-6 RU in height

  • Specify the exact RU height required.

  • Rack frame comes flat packed.

  • Rack frame can be pre-assembled if picked up.

Overall Dimensions:

2RU - H = 176mm   *  550mm wide  *  527mm deep

3RU - H = 221mm  *  550mm wide  *  527mm deep

4RU - H = 265mm  *  550mm wide  *  527mm deep

5RU - H = 310mm  *  550mm wide  *  527mm deep

6RU - H = 354mm  *  550mm wide  *  527mm deep

BG-PULLOUT-450-12

Pull out swivel & rack frame between 7-12 RU in height

  • Specify the exact RU height required.

  • Rack frame comes flat packed.

  • Rack frame can be pre-assembled if picked up.

Overall Dimensions:

7RU - H = 399mm  *  550mm wide  *  527mm deep

8RU - H = 443mm  *  550mm wide  *  527mm deep

9RU - H = 487mm  *  550mm wide  *  527mm deep

10RU - H = 532mm  *  550mm wide  *  527mm deep

11RU - H = 576mm  *  550mm wide  *  527mm deep

12RU - H = 621mm  *  550mm wide  *  527mm deep

BG-PULLOUT-450-18

Pull out swivel & rack frame between 13-18 RU in height

  • Specify the exact RU height required.

  • Rack frame comes flat packed.

  • Rack frame can be pre-assembled if picked up.

Overall Dimensions:

13RU - H = 665mm  *  550mm wide  *  527mm deep

14RU - H = 710mm  *  550mm wide  *  527mm deep

15RU - H = 754mm  *  550mm wide  *  527mm deep

16RU - H = 799mm  *  550mm wide  *  527mm deep

17RU - H = 843mm  *  550mm wide  *  527mm deep

18RU - H = 887mm  *  550mm wide  *  527mm deep

BG-PULLOUT-450-24

Pull out swivel & rack frame between 19-24 RU in height

  • Specify the exact RU height required.

  • Rack frame comes flat packed.

  • Rack frame can be pre-assembled if picked up.

Overall Dimensions:

19RU - H = 932mm high  *  550mm wide  *  527mm deep

20RU - H = 977mm high  *  550mm wide  *  527mm deep

21RU - H = 1021mm high  *  550mm wide  *  527mm deep

22RU - H = 1065mm high  *  550mm wide  *  527mm deep

23RU - H = 1110mm high  *  550mm wide  *  527mm deep

24RU - H = 1154mm high  *  550mm wide  *  527mm deep
