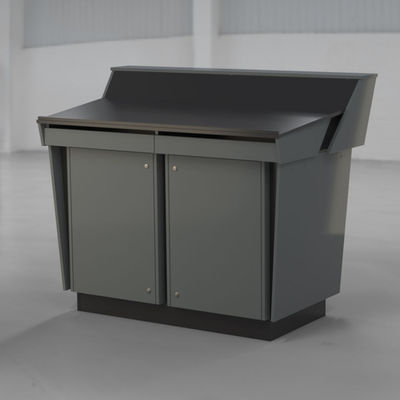

C-Series Double Bay Lecterns

The C-Series double bay lectern is a two-door wide lectern with pull out keyboard drawers and angled data panel to house touch screens, power/data points etc.



The top has been designed so that the angled “data panel” and work surface can be made at any angle, allowing for flexibility in touch panel sizes.



C-Series double bay lecterns come standard with RU rack stripping, lockable/ removable hinged door and service panel.



C-Series internal width is correct for 19inch rack stripping and has panels for fixing of cables at the rear.



Dimension X in the following drawings can be changed to suit the various size touch panels or power/data points you plan to use (affects lectern overall height)



C-Series double bay lecterns come fully assembled.

Options

Popular Options available to order with your A-Series Single bay lectern.

External Shelves

( BG05 )

Cable pass grommet

( BG-Cable-G )

Mic/Shockmount

( BG-M1 & BG-SH )

Control Panel Cut-outs

( BG10 )

LED Light

( BG-LED-CS )

Monitor set

into worktop

( BG06 or BG06-N )

Keyboard Drawer

( BG-D )

( BG-HANDLE )

Handle

Swivel castor

wheel base

(BG-HDW4 )

Door Cut-outs

( BG08-D )

GPO size Cut-outs

( BG09 )

Monitor Pole

( BG-POLE-FT )

Lower Ends with angled data-board

( BG-LOW-END )

Fan with transformer

( BG-120F-INST )

Perspex Logo

(Customised to your spec)

( BG-P-L )

Castor wheels behind kickboards

( BG-HDW4-K )

A-Series Lecterns can be fully customised to suit your requirements. Contact us to discuss your needs

Order Codes and specifications

BGL-TM02A

Double bay with Angled work surface

  • Internal height:  712mm  (16ru)

  • Internal width:  Suits 19inch rack strip

  • Internal depth:  600mm  - See drawing to right for rack strip positions

  • Worksurface height (to lowest edge):  947mm - Can vary depending on angles

  • Dimension X on drawing to right can be modified to suit your equipment.

Overall Dimensions:  1152mm high  *  1442mm wide  *  840mm deep

BGL-TM02F

Double bay with Flat work surface

  • Internal height:  712mm  (16ru)

  • Internal width:  Suits 19inch rack strip

  • Internal depth:  600mm  - See drawing to right for rack strip positions

  • Worksurface height (to lowest edge):  947mm - Can vary depending on angles

  • Dimension X on drawing to right can be modified to suit your equipment.

Overall Dimensions:  1152mm high  *  1442mm wide  *  840mm deep

BGL-TM02LA

Double bay with LEFT hand angled work surface

  • Internal height:  712mm  (16ru)

  • Internal width:  Suits 19inch rack strip

  • Internal depth:  600mm  - See drawing to right for rack strip positions

  • Worksurface height (to lowest edge):  947mm - Can vary depending on angles

  • Dimension X on drawing to right can be modified to suit your equipment.

Overall Dimensions:  1152mm high  *  1442mm wide  *  840mm deep

BGL-TM02RA

Double bay with RIGHT hand angled work surface

  • Internal height:  712mm  (16ru)

  • Internal width:  Suits 19inch rack strip

  • Internal depth:  600mm  - See drawing to right for rack strip positions

  • Worksurface height (to lowest edge):  947mm - Can vary depending on angles

  • Dimension X on drawing to right can be modified to suit your equipment.

Overall Dimensions:  1152mm high  *  1442mm wide  *  840mm deep

Colours

We can build your C-Series double-bay lectern in any available melamine board colour from all board suppliers.

Our standard pricing is worked out based on melamine board; however, we can build your C-series lectern in custom finishes such as polyurethane paint or natural veneers.

Please contact us if you would like to discuss colour and finish options.
