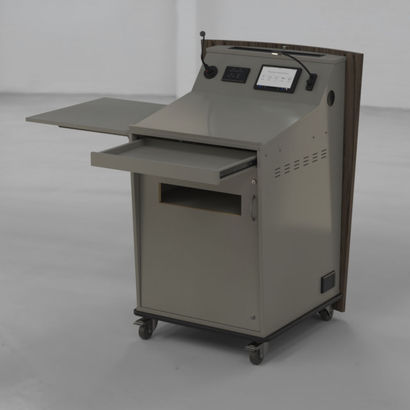

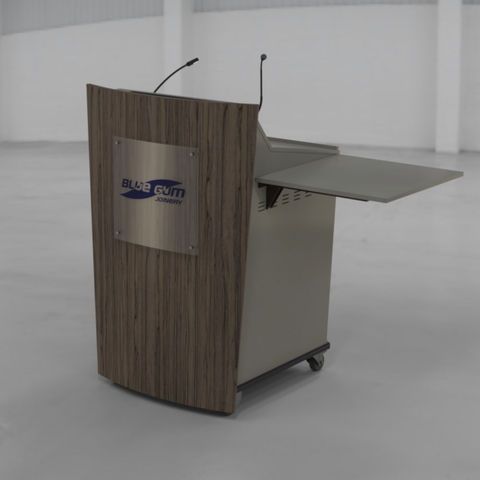

D-Series Single Bay Lecterns

The D-Series single bay lectern is a one door wide lectern with an angled data panel where touch screens, power/data points etc, can be mounted. Internals are also large enough to house an AV rack frame.

The lectern top has been designed so that the angled “data panel” and work surface can be made at any angle, allowing for the fitment of various sized components.

D-Series single bay lecterns come standard with two adjustable/removable internal shelves, lockable/ removable hinged door and service panel.

The overall height and width are fixed as standard.

Options

Popular Options available to order with your D-Series Single bay lectern.

External Shelves

( BG05 )

D-Series Single Bay Presenter Side Options and Codes

D-Series Single Bay Audience Side Option and Codes

Mic/Shockmount

( BG-M1 & BG-SH )

Control Panel Cut-outs

( BG10 )

LED Light

( BG-LED-CS )

Cable pass grommet

( BG-Cable-G )

Keyboard Drawer

( BG-D )

( BG-HANDLE )

Handle

Door Cut-outs

( BG08-D )

GPO size Cut-outs

( BG09 )

Swivel castor wheel base

(BG-HDW4 )

Monitor Pole

( BG-SP-AA-B )

Perspex Logo

(Customised to your spec)

( BG-P-L )

Fan with transformer

( BG-120F-INST )

Blue Gum Joinery Aluminium Rack Frames

D-Series Lecterns can be fully customised to suit your requirements. Contact us to discuss your needs

Order Codes and specifications

BGL-RNM01A

Single Bay - Angled work surface

Internal height (without optional keyboard drawer): 770mm (17ru)
Internal height (With optional keyboard drawer): 690mm (15ru)
Internal width: 596mm
Internal depth: 653mm
Worksurface height (to lowest edge): 910mm

Overall Dimensions: 1190mm high * 812mm wide * 795mm deep

BGL-RNM01F

Single Bay - Flat work surface

Internal height (without optional keyboard drawer): 770mm (17ru)
Internal height (With optional keyboard drawer): 690mm (15ru)
Internal width: 596mm
Internal depth: 653mm
Worksurface height: 910mm
